Door controls.

Door Closer and Floor Spring Product Range.

HOME
IRONMONGERY
DOOR CONTROLS

Door closers and floor springs.

All
DOOR CLOSERS
FLOOR SPRINGS

DOWNLOAD DATASHEET

Product Code: 3100SDS Define Overhead Cam Action Closer

Variable power adjustable EN 2-5
Maximum door weight 110kg
Maximum door width 1250mm
Universal fitting – can be fitted in standard, parallel arm or transom positions
Slimline – protrudes only 43mm off door/frame face
Tested to EN 1154
Fire tested to EN 1634-1
35-year guarantee
Tested to 500,000 cycles
For internal use only

Size: Body W257 x H68 x D43mm, Arm W461 x H20 x D30mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

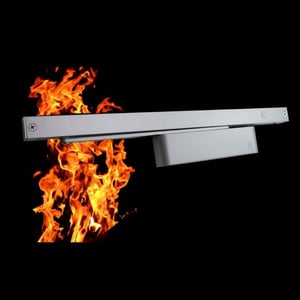

Product Code: 3101SDS Define EMHO Slide Arm for 3100 Closer

Maximum door weight 110kg
Maximum door width 1250mm
Universal fitting – can be fitted in standard, parallel arm or transom positions
Tested to EN 1155 (electrical compatibility)
Tested to EN 1154 (controlled door closing devices)
Fire tested to EN 1634 (dual orientation fire test)
5-year guarantee
For internal use only

Size: Body W257 x H68 x D43mm, Arm W606 x H36 x D30mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

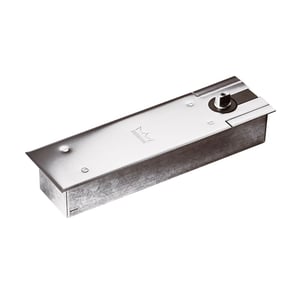

Product Code: 3104SDS Define Floorspring Kit

Spring strength EN 1-4
Maximum door weight 120kg
Maximum door width 1100mm
Mechanical backcheck
Suitable for double swing doors
Tested to EN 1154
Certifire CF127
Supplied with cement box, cover plate, bottom strap and top pivot
For internal use only

Size: L285 x W82 x D50mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

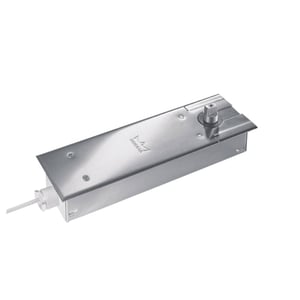

Product Code: 3105SDS Define EMHO Floorspring Kit

Spring strength EN 4
Maximum door weight 300kg
Maximum door width 1100mm
EMHO function settable between 75° – 180°
24v DC
Mechanical backcheck
Suitable for double swing doors
Tested to EN 1154
Certifire CF127
Supplied with cement box, cover plate, bottom strap and top pivot
For internal use only

Size: L341 x W78 x D60mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

SDS door closer and floor spring products are suitable for these doorsets:

MORE ABOUT THIS PRODUCT

SDS Dfendoor

Designed for high-traffic hospital environments, Dfendoor is a high-performance, resilient PVC post-formed doorset that is both fire compliant and hygienic.

Doors in busy hospital departments are in constant use and need to be strong, reliable and able to withstand ongoing rough treatment – this is where Dfendoor comes in.

MORE ABOUT THIS PRODUCT

MORE ABOUT THIS PRODUCT

SDS Shieldoor

Lead-lined to achieve effective shielding from radiation, the SDS Shieldoor system is an incredibly resilient, hard-wearing and hygienic solution for high-traffic, high-wear hospital environments.

Lead thickness can range from code 3 up to code 8, depending on the level of protection required.

MORE ABOUT THIS PRODUCT
