Shieldoor.

The lead-lined single swing door system for hospitals and clinical environments.
All Shieldoors are lead lined to achieve effective shielding from X-rays.

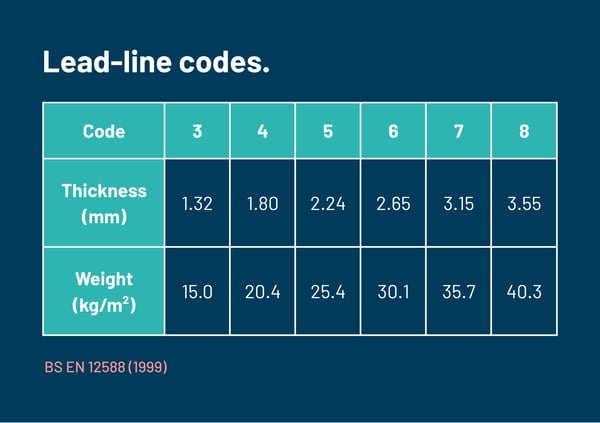

Lead thickness can range from code 3 up to code 8, depending on the level of protection needed, making them ideal for a wide range of healthcare locations.

SDS Shieldoor is an incredibly resilient, hard-wearing and hygienic doorset, ideal for high-traffic, high-wear hospital environments. As well as being extremely tough, there is also minimal maintenance required compared to timber and laminate products.

The SDS Shieldoor range has a very comprehensive range of glazing options, colour options, door leaf sizes, and also offers the ability to customise with items such as edge protectors and kickplates.

SDS Shieldoor key benefits:

  • 10 year warranty
  • Severe duty rating
  • BM Trada Q-mark certification
  • Available in NFR, FD30 & FD60
  • Available in 35+ colours and woodgrain finishes
  • Universal frame design providing completion radiation protection regardless of wall construction
  • Comprehensive range of glazing options incorporating lead shielding and fire rating
  •  RPA approval -Comprehensive range of glazing options incorporating lead shielding and fire rating

Shieldoor Single Swing Door Systems

The DSS, DUS & DDS Door Systems are all single swing doorsets.
They are hung on hinges and are designed to open in one direction only.

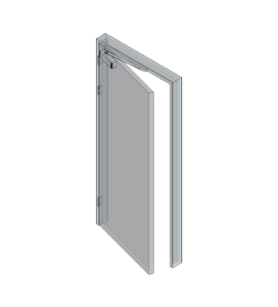

Shieldoor-single-door-single-swing

SSS

Dfendoor
Single Door
Single Swing

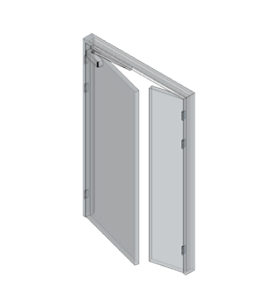

Shieldoor-unequal-pair-single-swing

SUS

Shieldoor
Unequal Pair
Single Swing

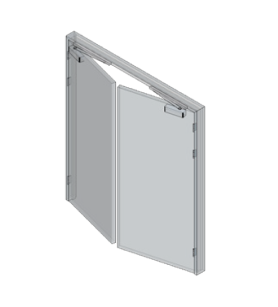

Shieldoor-double-door-single-swing

SDS

Shieldoor
Double Door
Single Swing

Shieldoor is available in a range of standard colours and finishes. Colours and finishes are represented below, however it is not possible to achieve a 100% match on the website due to screen variations, we have therefore included the closest RAL or Pantone colour as a guide. Before placing an order, we will send you a sample of your chosen colour for pre-production sign-off.

If your project requires a bespoke colour palette, please speak to one of our Project Consultants to discuss in more detail.

Shieldoor colours.

White
White:
LRV 79; RAL 9010
Snowflake
Snowflake:
LRV 81; RAL 9003
Chalk
Chalk:
LRV 78; RAL 9001
Gunpowder
Gunpowder:
LRV 51; RAL 7035
Cloud
Cloud:
LRV 69; RAL 9002
Cobble
Cobble:
LRV 36; RAL 9006
Flint
Flint:
LRV 21; RAL 7037
Anthracite
Anthracite:
LRV 8; RAL 7016
Charcoal
Charcoal:
LRV 5; RAL 7021
Mushroom
Mushroom:
LRV 68; RAL 1013
buttermilk
Buttermilk:
LRV 69; RAL 1015
Carbon
Carbon:
LRV 22; Pantone 409C
Taupe
Taupe:
LRV 29, RAL 1019
Sienna
Sienna:
LRV 29; RAL 040 60 10
Denim
Denim:
LRV 41; Pantone 284C
Lupin
Lupin:
LRV 23; RAL 5024
Royal-Blue
Royal Blue:
LRV 10; RAL 5017
Midnight
Midnight:
LRV 5; RAL 5003
peppermint
Peppermint:
LRV 49, RAL 150 80 40
Spearmint
Spearmint:
LRV 75; RAL 150 90 10
Jade
Jade:
LRV 36, Pantone 557C
Verdure
Verdure:
LRV 56, RAL 120 80 40
Aqua
Aqua:
LRV 20; RAL 6033
Teal
Teal:
LRV 18, Pantone 2223C
Primrose
Primrose:
LRV 65, Pantone 938C
sunflower
Sunflower:
LRV 61; RAL 080 80 70
Mandarin
Mandarin:
LRV 33; RAL 050 70 50
Coral
Coral:
LRV 32; RAL 030 60 30
Lilac
Lilac:
LRV 29; RAL Pantone 7660C
Grape
Grape:
LRV 22; RAL 4008
Violet
Violet:
LRV 21; Pantone 688C
Claret
Claret:
LRV 8; RAL 3032





Woodgrains.

American-Black-Walnut
American Black Walnut:
 LRV 40
Swiss-Elm
Swiss Elm:
 LRV 22
Trojan-Oak
Trojan Oak:
 LRV 37
American White Oak
American White Oak:
 LRV 43
Beech2-e1633441843180
Ellmau Beech:
 LRV 46


Download files here.

Accountability.

We actively engage with architects, facilities managers and contractor project teams, helping you to optimise specifications whilst maintaining compliance standards for your hospital or clinical environment project.

As well as designing, manufacturing and supplying SDS Shieldoor doorsets ourselves, we are also able to provide a complete ironmongery suite as part of the overall specification. This time-saving additional option makes SDS an invaluable resource, saving buyers valuable time whilst also providing full accountability for the supply of complete, ready to install products.





IMAGE (2)

BM TRADA Q-Mark.

Over 35 years BM TRADA has become one of the UK’s leading certification bodies.

Fully UKAS accredited, BM TRADA’s Q-Mark is one of the most rigorous certification processes for building and construction products. SDS Shieldoor is designed and manufactured to meet the exacting Q-Mark standard up to FD60, ensuring that our customers remain compliant with the latest fire safety regulations.

BM Trada Timber Fire Door Manufacture



IMAGE (3)

Sustainability.

We are used to working with architects, facilities managers and contractor project teams, helping you to optimise specifications whilst maintaining compliance standards for your hospital or clinical environment project.

As well as designing, manufacturing and supplying SDS Shieldoor doorsets ourselves, we are also able to provide a complete ironmongery suite as part of the overall specification. This time-saving additional option makes SDS an invaluable resource, saving buyers valuable time whilst also providing full accountability for the supply of complete, ready to install products.

Our SDS Shieldoor doorsets are also FSC® certified.

IMAGE (4)

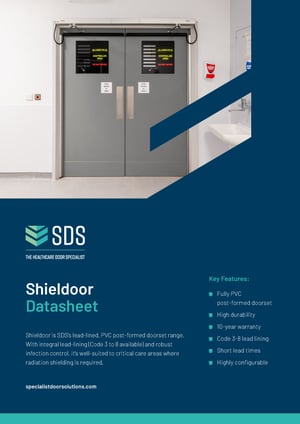

SDS - Data Sheet - Shieldoor_Page_1

Download the Shieldoor Datasheet.
