SDS ancillary items.

Introducing our exclusive line of ancillary Items – meticulously crafted for usage in hospitals and clinical settings.

HOME
IRONMONGERY
ANCILLARY ITEMS

At SDS, we fully appreciate that it is important to our customers to have the convenience, efficiency and accountability of a ‘one stop shop’, ready-to-install solution.

As part of our overall doorset solution for hospital and clinical environments, SDS has extensive experience in the supply of ancillary items. Over time, we have forged close relationships with manufacturers whose products are tested and are best suited for healthcare and pharmaceutical applications.

We have an extensive track record of supplying to hospitals and our product choices reflect products that have been proven to perform well in challenging healthcare and clinical settings.

SDS ancillary items.

All
escutcheon
cylinder pull
turn and release
misc
Push and Kick Plates
SIGNAGE

DOWNLOAD DATASHEET

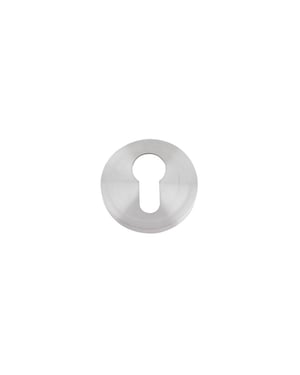

Product Code: 1103-CNSDS Define Copper Euro profile

Solid 70 – 30 Copper Nickel alloy
Continuously kills 99.9% of harmful bacteria
Maintains clinical aesthetic of stainless steel
Antibacterial properties work 24/7

Size: 52mm diameter, 8mm thick

Finish: Copper Nickel

DOWNLOAD DATASHEET

Product Code: 1103SDS Define Euro profile escutcheon

Grade 304 stainless steel

BS EN 1634-1
Push fit rose covers
Supplied with fixing screws

Size: 52mm diameter, 8mm thick

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

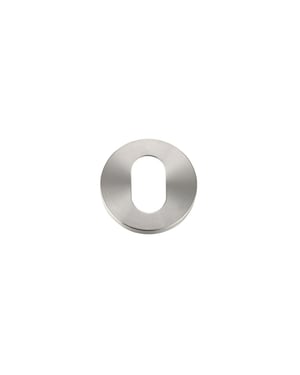

Product Code: 1104SDS Define Oval profile escutcheon

Grade 304 stainless steel
BS EN 1634-1
Push-fit rose covers
Supplied with fixing screws

Size: 52mm diameter, 8mm thick

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1105SDS Define Euro profile cylinder pull

304 Grade stainless steel
BS EN 1634-1
Supplied with fixing screws

Size: 43 x 88mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

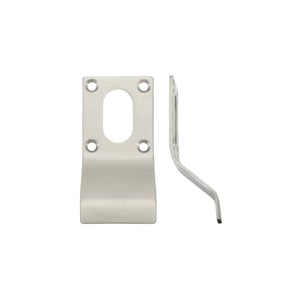

Product Code: 1106SDS Define Oval profile cylinder pull

304 Grade stainless steel
BS EN 1634-1
Supplied with fixing screws

Size: 43 x 88mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

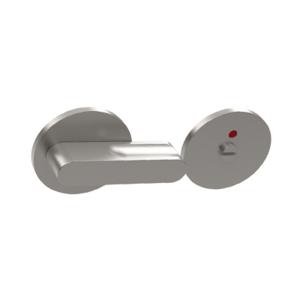

Product Code: 1111-CNSDS Define Copper Bathroom turn & release

Solid 70 – 30 Copper Nickel alloy
Continuously kills 99.9% of harmful bacteria
Maintains clinical aesthetic of stainless steel
Antibacterial properties work 24/7
Fire tested to BS476 FD60

Size: 52mm diameter, 4mm thick

Finish: Copper Nickel

DOWNLOAD DATASHEET

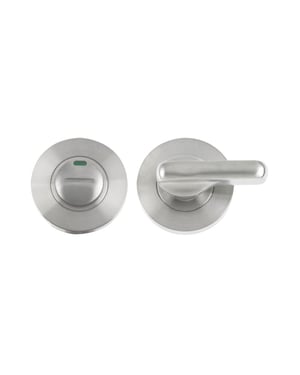

Product Code: 1111SDS Define Bathroom turn & release

Grade 304 stainless steel
BS EN 1634-1
Indicator to outside
Push fit rose covers
Supplied with fixing screws

Size: 52mm diameter, 8mm thick

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1157SDS Define+ Bathroom turn & release

Define+ Anti-bacterial coating
Grade 304 stainless steel
BS EN 1634-1
Indicator to outside
Push-fit rose covers
Supplied with fixing screws

Size: 52mm diameter, 8mm thick

Finish: Define+ Satin Stainless Steel

DOWNLOAD DATASHEET

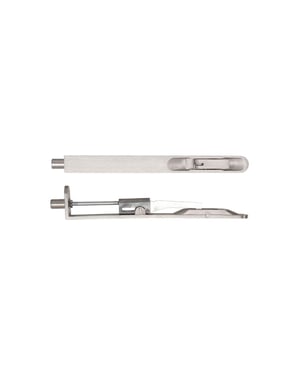

Product Code: 2108SDS Define Lever action flush bolt

11mm dia. bolt
15mm bolt throw
Radius profile
Suitable for use on FD30/FD60 doors with intumescent jacket (2109)

Size: 200 x 20mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

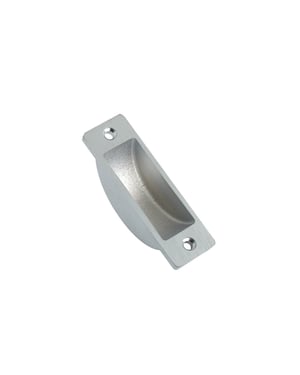

Product Code: 2110SDS Define Easy clean floor socket

BS EN 1634-1
Easy to clean

Size: 19 x 62mm

Finish: Satin finish

DOWNLOAD DATASHEET

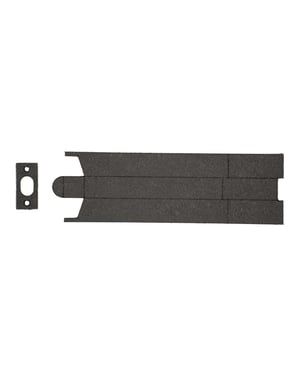

Product Code: 2109SDS Define Intumescent jacket for flush bolt

2mm Flexifire
Self-adhesive backing
Adjustable to suit product dimensions

Material: Graphite

Size: To suit 200 x 20mm flush bolts

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1112SDS Define Floor mounted doorstop

Concealed fixing
BS EN 1634-1

Size: 45mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 2111SDS Define Double action pivot set

Allows door to be opened out in case of an emergency
Use with (2112) Pivot emergency release door stop
Maximum door weight 80kg
Grade 304 stainless steel

Size: N/A

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 2112SDS Define Pivot emergency release door stop

Allows door to be opened out in case of an emergency
Use with (2111) Double action pivot set
Grade 304 stainless steel

Size: 80 x 40mm

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

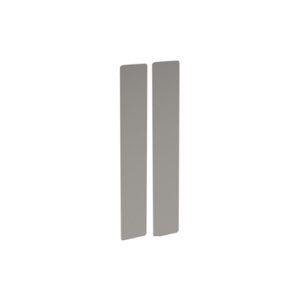

Product Code: 1100-CNSDS Define Copper Push Plate

Push plate with radius corners
Supplied with fixing screws
Solid 70 – 30 Copper Nickel alloy
Continuously kills 99.9% of harmful bacteria
Maintains clinical aesthetic of stainless steel
Antibacterial properties work 24/7, never wears away

Size: 450 x 75mm R/C

Finish: Copper Nickel

DOWNLOAD DATASHEET

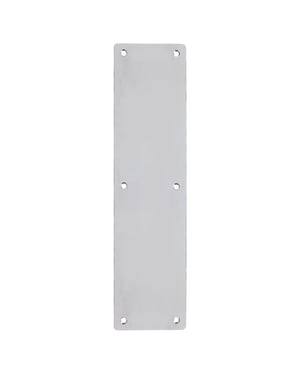

Product Code: 1126SDS Define Push plate

Push plate with radius corners
Supplied with fixing screws

Size: 650 x 90mm R/C

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1100SDS Define Floor mounted doorstop

Push plate with radius corners
Supplied with fixing screws

Size: 450 x 90mm R/C

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1121SDS Define Floor mounted doorstop

304 Grade stainless steel
H200mm as standard
Width to suit door

Size: Any size available to order

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1154SDS Define+ Push Plate

efine+ Anti-bacterial coating
Push plate with radius corners
Supplied with fixing screws

Size: 350 x 90mm R/C

Finish: Define+ Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1155SDS Define+ Push Plate

Define+ Anti-bacterial coating
Push plate with radius corners
Supplied with fixing screws

Size: 450 x 90mm R/C

Finish: Define+ Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1156SDS Define+ Push Plate

Define+ Anti-bacterial coating
Push plate with radius corners
Supplied with fixing screws

Size: 650 x 90mm R/C

Finish: Define+ Satin Stainless Steel

DOWNLOAD DATASHEET

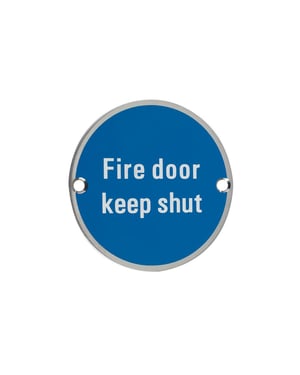

Product Code: 1113SDS Define Fire Door Keep Shut sign

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1114SDS Define Fire Door Keep Locked Shut sign

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

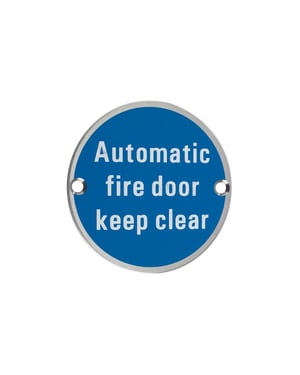

Product Code: 1115SDS Define Automatic Fire Door Keep Clear sign

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1116SDS Define Floor mounted doorstop

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

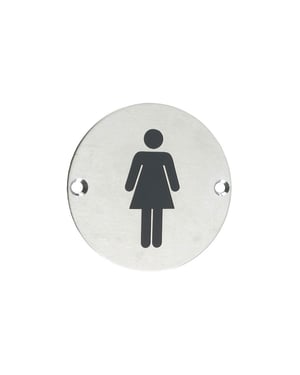

Product Code: 1117SDS Define Female toilet symbol

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1118SDS Define Floor mounted doorstop

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1119SDS Define Disabled symbol

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

Product Code: 1120SDS Define Floor mounted doorstop

BS EN 1634-1
Supplied with fixing screws

Size: 76mm diameter

Finish: Satin Stainless Steel

DOWNLOAD DATASHEET

People we work with.

SDS ancillary items are suitable for these doorsets.

MORE ABOUT THIS PRODUCT

SDS Dfendoor

Designed for high-traffic hospital environments, Dfendoor is a high-performance, resilient PVC post-formed doorset that is both fire compliant and hygienic.

Doors in busy hospital departments are in constant use and need to be strong, reliable and able to withstand ongoing rough treatment – this is where Dfendoor comes in.

MORE ABOUT THIS PRODUCT

MORE ABOUT THIS PRODUCT

SDS Shieldoor

Lead-lined to achieve effective shielding from radiation, the SDS Shieldoor system is an incredibly resilient, hard-wearing and hygienic solution for high-traffic, high-wear hospital environments.

Lead thickness can range from code 3 up to code 8, depending on the level of protection required.

MORE ABOUT THIS PRODUCT

SDS Assuredoor

Fully configurable laminate, veneer and paint-grade faced doorsets designed for healthcare environments.

SDS Assuredoor offers architects and specifiers a versatile solution for low-impact traffic areas. Available in laminate, veneer or paint-grade finishes, Assuredoor is ideal where aesthetics, compliance and flexibility are key.

Choose SDS for your next project. Get in touch with our specialist team to find out more about how our UK-designed and manufactured, fully compliant, healthcare doorsets can meet the needs of your project.
