SDS door cores are 3-layer cores made of very densely packed timber particles, which are extremely stable and balanced, and have achieved the highest possible ratings for quality, strength and overall performance.

These door cores are tested to DD 171, EN 1192, EN 947, EN 949 and EN 950 standards for:

Vertical load
Static torsion
Soft, hard and heavy body impact
Slamming shut and open
Closure against obstruction
Resistance to jarring and vibration
Abusive force on handles
Operating forces
Cycling – as an indication of anticipated service life

To test the durability, over one million cycles were completed on a 54mm thick door fitted into a softwood frame using standard hardware. After 10 months’ continuous opening and closing, the door assembly showed no sign of fatigue. Tested to BS EN 1191 (with classification according to BS EN 12400).

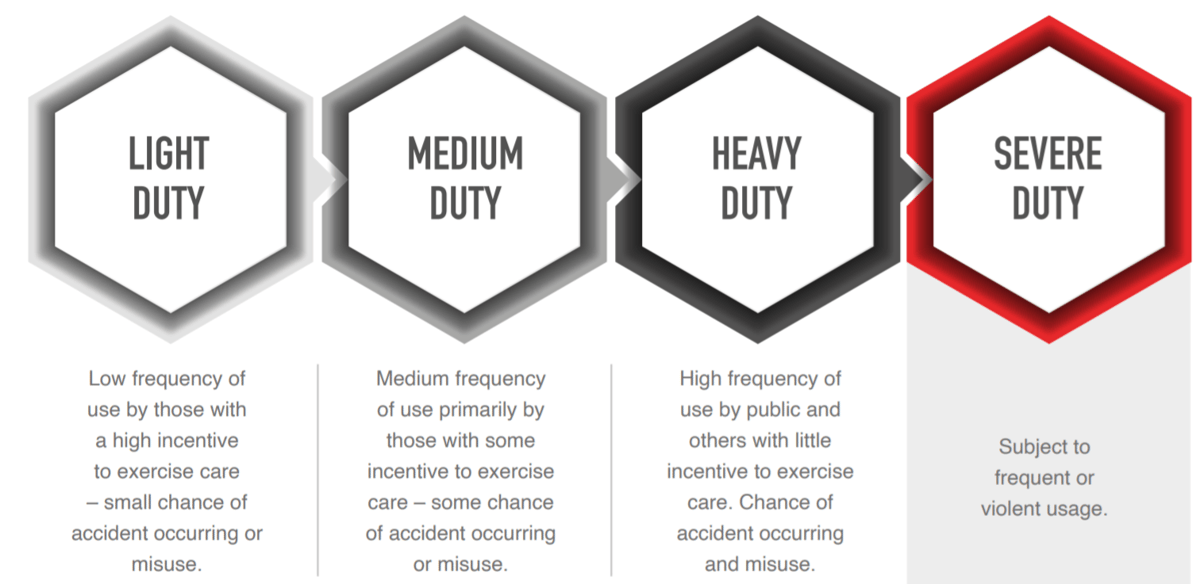

Judged on how they perform in tests, door assemblies are awarded one of four classifications, ranging from Light, Medium or Heavy to Severe Duty. In independent tests, SDS door cores achieved SEVERE DUTY – the highest grading possible in the British Standard of Mechanical Tests for ‘hinged or pivoted doors’.
