Frame Types/Drawings

Here are our standard frame designs which have been tried, tested and proven in countless projects over many years. All frame types have downloadable DWG and PDF drawings.

Download PDF Drawing Download DWG Drawing

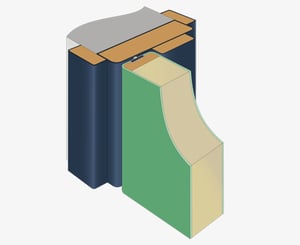

Traditional Frame with Loose Stops & Architraves

Our most popular frame type for a variety of applications
To suit single swing doors
PVC encapsulated – in any of our dFend colour range
Suits wall depths between 90 – 160mm (extension lining available for deeper reveals)

Download PDF Drawing Download DWG Drawing

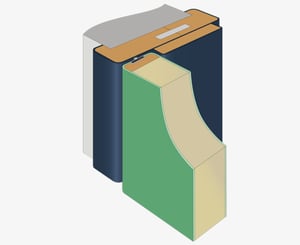

Split Frame with Integral Architraves & Loose Stops

Integral architrave design fits around wall reveal
To suit single swing doors
Available in any of our dFend colour range
Suits wall depths between 90 – 160mm (fillet extension section available for deeper reveals)

Download PDF Drawing Download DWG Drawing

Double Swing Scalloped Frame with Architraves

Use for Double Swing Centre doors – such as cross-corridor doors
Scalloped profile
PVC encapsulated – in any of our dFend colour range
Suits wall depths between 90 – 160mm (extension lining available for deeper reveals)

Download PDF Drawing Download DWG Drawing

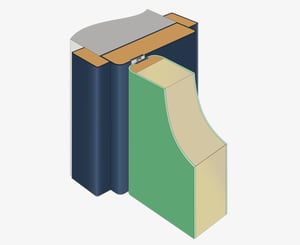

Double Swing Offset Frame with Architraves

Use for Double Swing Offset doors – such as emergency release toilet doors to allow for a releasable stop to be mounted on the inside
PVC encapsulated – in any of our dFend colour range
Suits wall depths between 90 – 160mm (extension lining available for deeper reveals)

Download PDF Drawing Download DWG Drawing
